- Place of Origin: China
- Brand Name: JINGKE
- Model Number: JK-4050

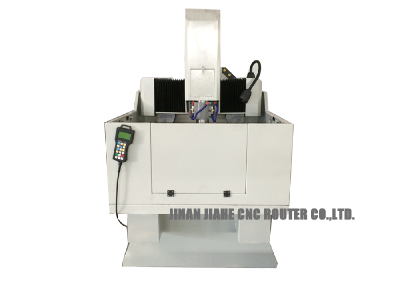

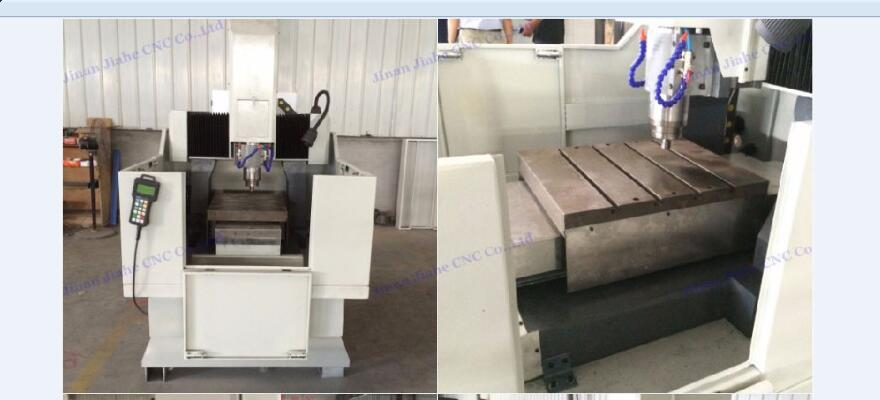

1. Machine Introduction
It is a type of metal moulding engraving machine.This kind of machine is specially developed for metal cutting engraving,working size can be customized upon requirements,this cnc metal engracing machine is characterized of easy operation,compact structure and low cost.
2.Features:
1. The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.
2. Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
3. Easy operate DSP system .
4. Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.
5. Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life.
6. Available for continuous work for a long time.
3. Applications:
Widely used in advertising industry, solid wooden, archaize furniture carving, musical insturment making,light box & mould, aluminum composite board processing, seal , metal scutcheon, bronzing board,carbon plate in battery, copper stamp, aluminum, oxhorn, printer’s blankey,arcylic, double color board, PVC, ABS,MDF,PCB , plastic board, wave board and other metal or non-metal materials,etc.
- Place of Origin: China
- Brand Name: JINGKE
- Model Number: JK-4050
Model | JK-4050 |
Structure/machine body | Whole cast iron |
Movement style | Gantry fixed, table move |
X Y Z working size | 400*500*300mm |
X Y Z rail | HIWIN Linear square guide rail |
X Y Z transmission | Ball screw |
Spindle | 4.5KW water cooling spindle |
Spindle speed | 24000rpm |
Motor | Japan Panasonic servo motor |
Driver | Japan Panasonic servo driver |
Inverter | 5.5KW inverter |
Voltage | AC 220V/AC 380V 50HZ |
Collets | ER25 3.175-12.7mm |
Transformer | Yes |
Cover | X steel cover |
Lubrication | Yes |
Max. speed | 12m/min |
Max. working speed | 8m/min |
Repeat reposition accuracy | 0.025mm |
Feeding height | 300mm |
Max. cutting thickness | <=20mm |
Software | Artcam/Ucancam/Type 3 |
Control system | DSP control system |
Command | G-code |
